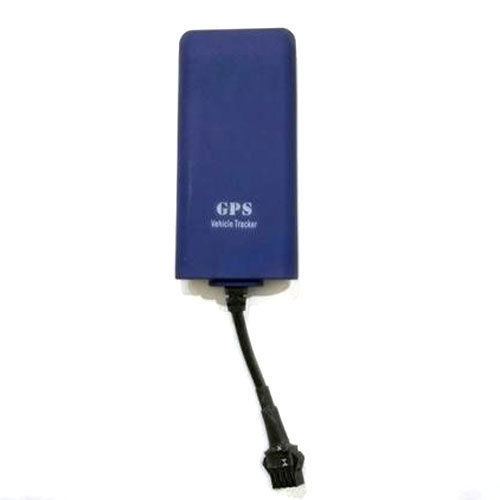

(VTS) Vechicle Tracking System Manufacturer Jaipur

A vehicle tracking system combines the use of automatic vehicle location in individual vehicles with software that collects these fleet data for a comprehensive picture of vehicle locations. Modern vehicle tracking systems commonly use GPS technology for locating the vehicle, but other types of automatic vehicle location technology can also be used.


Key Features :-

Easy installation process & Handle. IP 65 compliant ABS body.
Multi- GNSS GPS & GLONASS with IRNSS support. Graphical representation of vehicle movement with concurrent changes in location.
Real time vehicle information available at the tip of the finger. Embedded (internal) GPS & GPRS Antenna.
Vehicle immobilization through SMS or Server. Live tracking, Replay tracking.
Multi vehicle view on map with last known geo location and time stamping. Geo fencing In/Out.
Authorized control of vehicle with unique ID of drivers. Zone wise/role based access to various users for specific vehicle’s management/view.
Fuel sensor integration. RF-Id reader (for driver authentication).
Mi- Fare card reader (for driver tracking in vehicle or student tracking in school bus). Alerts: Ignition ON/OFF/ Door Open/Low Battery/Box Tampering/Over Speed.
External power cut Alarm , Ignition /Fuel cut off. SOS/ panic Alert.
3 Axis Accelerometer, Gyroscope. Deriver behavior monitoring using accelerometer and Gyroscope (harsh breaking, harsh acceleration alerts).
Offline tracking through SMS (in case of internet connection not available). Offline storage data functionality.
Battery back-up to 6Hrs. Over the air configuration parameters update.
3 IP supported device.

Fare meter has inbuilt memory to store 15000 positional logs in case of disconnection from the server. Frequency of transmission of data logs is selectable from server.
perating Temperature range is from -40 Deg C to 85 Deg. C. L1 Band receiver channel with 56 channels, Horizontal position accuracy is 2.5 m CEP.
Timing accuracy is <100 NS. TTFF Cold start is <60 S and warm start is <40 S.
Patch antennae receiving frequency is 1575.42 MHz +/- 1.023 MHz. Data communication over TCP/IP protocol.
Over the air configuration parameters update.


Quad-Band : 850/900/1800/1900 MHz. GPRS Unit - slot class : 12, 1-12 configurable.
GPRS Mobile station : Class B. Complaint to GSM Phase 2/2 +: Class 4 ([email protected]/900 MHz), Class 1 ([email protected]/1900 MHz).
Operation temperature : -40 Deg. C to 85 Deg, C. Integrate two way voice communications , Non transparent mode protocols : PPP, TCP/IP, HTTP, FTP, MMS.
The message string sent to server in Hex/ASCII/BIN Format. The message string will have a header to identify the message i.e. GPS Status message, main power disconnection alert, TRIP START alert, TRIP STOP..
Alert, PANIC alert, Device Health Status.
